This lamp illuminates and an
audible warning will sound if the
driver’s safety belt has not been fastened when the vehicle’s
ignition is turned on.

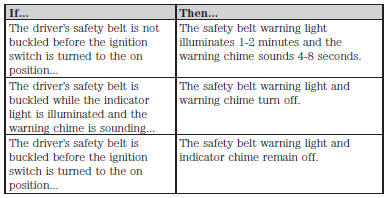

Conditions of Operation
Safety belt height adjustment
WARNING: Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the safety ...
Safety belt-minder
This feature supplements the safety belt warning function by providing
additional reminders by intermittently sounding a chime and illuminating
the safety belt warning light when the driver’s or f ...
