About this manual
Thank you for choosing ford. we recommend that you take some time to get to know your vehicle by reading this manual. the more that you know about it, the greater the safety and pleasure you will get from driving it.
Warning:
Always drive with due care and attention when using and operating the controls and features on your vehicle.
Note:
This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle.
Note:
Some of the illustrations in this manual may be used for different models, so may appear different to you on your vehicle. However, the essential information in the illustrations is always correct.
Note:
Always use and operate your vehicle in line with all applicable laws and regulations.
Note:
Pass on this manual when selling your vehicle. It is an integral part of the vehicle.
This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.
A. Right-hand side
B. Left-hand side
Protecting the Environment
You must play your part in
protecting the environment. Correct
vehicle usage and the authorized disposal of waste, cleaning
and lubrication materials are significant steps toward this aim.
Symbol glossary
Warning:
you risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the warning symbol.

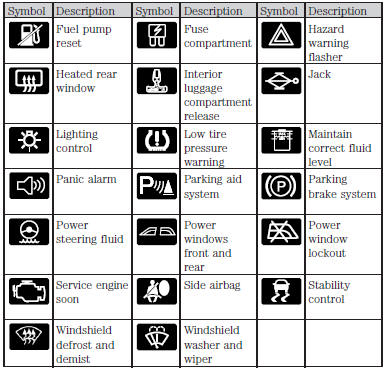

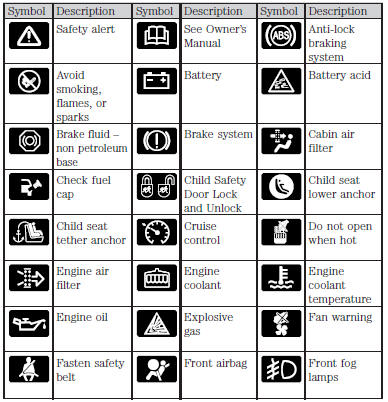

These are some of the symbols you may see on your vehicle.
- Data recording
- Replacement parts recommendation
- Special notices
- Mobile communications equipment
- Export unique (non–united states/canada) vehicle specific information
- General information
Data recording
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the perfor ...Other materials:
Jacking and Lifting
WARNING: When jacking or lifting the vehicle, block all wheels remaining
on the ground. Set the parking brake if the rear wheels will remain on the
ground. These actions help prevent unintended vehicle movement. Failure to
follow these instructions may result in serious personal injury.
&nb ...
Removal
Engine
Special Tool(s)
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any
type when working on or near any fuel-related component. Highly flammable
mixtures are always present and may be ignited. Failure to follow these
instructions may result in serious personal injury.
...
Disassembly and Assembly of Subassemblies
Cylinder Head
Special Tool(s)
Material
Cylinder Head
NOTE: RH shown, LH similar.
Disassembly
All cylinder heads
NOTE: If the components are to be reinstalled, they must be installed
in the same positions. Mark the components for installation into their original
locations.
Using the ...
